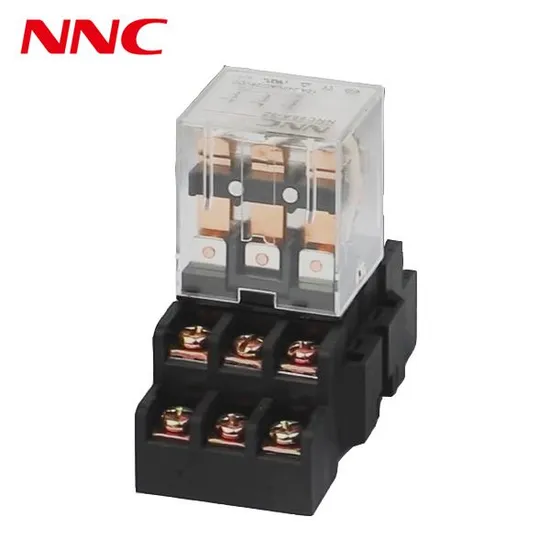

Intermediate Relay NNC68A
Specifacation Wiring Diagram PTF11A Clion Electric Co.,Ltd,established in 2003,is one of the leading industrial control
Basic Info.
| Model NO. | NNC68A-3Z(LY3)+PTF11A |
| Electricity Type | AC/DC |
| Load | Low Load |
| Protective Characteristics | Enclosed Relay |
| Action Principle | Electromagnetic Type |
| Size | Miniature |
| Type | Electric Parameter Relay |
| Max.Switching Voltage | 240VAC/28VDC |
| Contact Rating | 12A |
| Contact Material | AG Alloy(Agsno2; Agcdo) |
| Certificate | CCC,CQC,CE,TUV;UL;RoHS |
| Contact Form | 3z(Tpdt);3h(Tpst-No);3D(Tpst-Nc) |
| Transport Package | Carton |
| Specification | 27.3mm*21mm*35mm |
| Trademark | NNC |
| Origin | China |
| HS Code | 8536490000 |
| Production Capacity | 500000PCS/Week |
Product Description
Wiring Diagram
| Dimension | 27.3mm*31mm*35mm | ||||||
| Contact Feature | Form | 3Z(TPDT);3H(TPST-NO);3D(TPST-NC) | |||||
| Rated load | 12A | ||||||
| Max switching voltage | 240VAC/28VDC | ||||||
| Contact resistance | ≤100mΩ | ||||||
| Material | Ag Alloy(AgSnO2) | ||||||
| Electrical life | ≥1*105 | ||||||
| Mechanical life | ≥1*107 | ||||||
| Operate voltage (23ºC) | DC:≤75%*Rated voltage, AC:≤80%*Rated voltage | ||||||
| Release voltage (23ºC) | DC:≥10%*Rated voltage, AC:≥30%*Rated voltage | ||||||
| Maximum voltage (23ºC) | 110%*Rated voltage | ||||||
| Coil voltage | DC6-220V, AC6-380V (Customize allowed) | ||||||
| Coil power | DC: 1.5W, AC: 2.5VA | ||||||
| Pick-up time | ≤15ms | ||||||
| Release time | ≤10ms | ||||||
| Dielectric strength | Between open contacts of same pole | 1000VAC for 1min | |||||
| Between contacts of different pole | 1000VAC for 1min | ||||||
| Between contacts and coil | 1500VAC for 1min/4500VAC for 1min | ||||||
| Insulation resistance | ≥100mΩ(500VDC) | ||||||
| Ambient temperature | -40°C ~ 85°C | ||||||
| Ambient humidity | 45%-75%RH | ||||||
| Atmospheric pressure | 86-106KPa | ||||||
| Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||||||
| Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | ||||||
| Installation | PCB or Socket with DIN Rail | ||||||
| Weight | Approx. 50g/PCS | ||||||
| Packing | Carton with paper box inside | 300PCS/Carton, G.W.: 15KG,N.W. 14KG, Dimension(mm):330×310×345 | |||||
PTF11A
Clion Electric Co.,Ltd,established in 2003,is one of the leading industrial control component manufacturers in China.We provide a wide variety of industrial control components including: numerous types of relays (such as time relay, electromagnetic relay, solid state relay etc.),sensors, rotary encoders,switches (micro switch,limit switch,push button switch etc.) and other distribution control products,such as surge protective device,dual power automatic transfer switches,circuit breakers,etc. We imported the most advanced production technology and equipment from around the world. We provide high quality products with the lowest prices, and now our annual output reach 80million. Under the ISO9001:2000 ,ISO 14001:2004,OHSAS18001 management system, Clion has obtained CCC,CQC,CE,UL and TUV certificates for our products which passed the ROHS testing.Due to the product quality,as well as excellent customer service,the products are sold well all over the mainland China and exported to the country as the west,the middle east and the southeast Asia . To achieve the sustainable development in the increasingly fierce global market, Clion will insist on the management idea:Integrity,Beyond, to provide the high cost performance product, superior after-sale service and rapid delivery to meet the requirement of all the worldwide customers.
