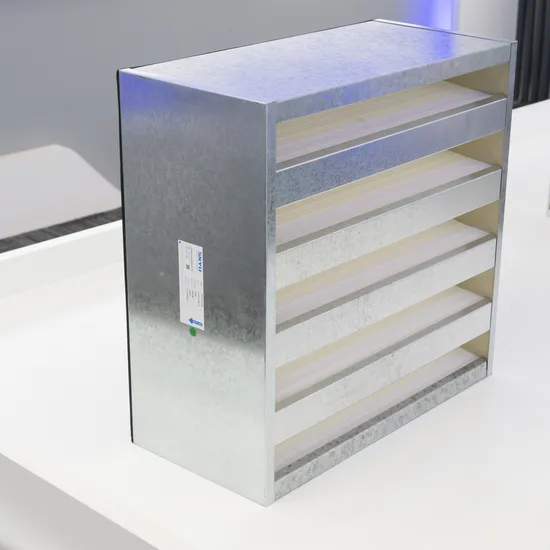

Single Header Type V
Basic Info.
| Model NO. | H4VH610610292 |
| Efficiency | H10-H14 |
| Filtration Grade | HEPA Filter |
| Type | V Bank Filter |
| Filter Screen | Glass Fiber/PP Composite Material |
| Frame Material | Anodized Aluminum Profile |
| Customization | Dimention /Logo/Label |
| Separator | Hot Melt Adhesive |
| Transport Package | Carton Boxes |
| Specification | Please refer to product specification |
| Trademark | SNYLI |
| Origin | China |
| HS Code | 8414809090 |
| Production Capacity | 400000 PCS/Year |
Product Description
Single Header Type V-Cell /V-Bank HEPA Filter with Plastic Frame Galvanized Steel Frame for Terminal Air Cleaning (H11, H12) MPPS: ≥99.95%
COMMON DIMENSIONS
PRODUCT INTRODUCTIONApplication: Mainly used for air conditioning purification equipment needs highventilation,such as medium filter and terminal filter in air -conditioning system.Frame: Plastic/Galvanized steel/Stainless steelMedia: Glass fiber/Synthetic fiberSeparator :Hot melt adhesiveStd. EN1822:2009 : H10-H14Std. ASHRAE 52.2-2007:MERV 15-MERV 19Efficiency:99.999%,99.99% ,99.97%,95% at 0.3μm(DOP/PSL/PAO Counting method)Maximum temperature: 70ºCMaximum relative humidity: 100%Customized size: Available
ADVANTAGES * Low pressure drop and high efficiency * Extended surface design ensures low resistance to airflow and reduce energy cost. * High velocities, variable air volumes high moisture * Light weight
| Mode | Actual size W×H×D(mm) | Air flow (m³/h) | Initial pressure drop(Pa) | Final pressure drop(Pa) | |
| Box type | H4VH305610292 | 305×610×292 | 1700 | 249Pa Face velocity 0.85m/sec | 500Pa *Proposed value |
| H4VH610610292 | 610×610×292 | 3400 | |||
| Single Header type | H4VH287592292 | 287×592×292 | 1700 | 265Pa Face velocity 0.45m/sec | 220Pa *Proposed value |
| H4VH592592292 | 592×592×292 | 3400 | |||
Q1.Are you a manufacture or trading company?A:We are a manufacure. Snyli Environmental Technology (Shandong) Co., Ltd was established in 2010, is a professional service provider of air purification products integrating R&D, production and sales, with registered brand- SYNLI.Q2: Where are air filters commonly used? A :HAVC(heating, air conditioning and ventilation systems) painting stations, chemical plants, pharmaceutical plants, cement or asphalt powder plants, clean rooms, power stations, heavy metal industries, gas turbines and cogeneration power plants, engineering and equipment plants, drying and baking rooms, hospitals, etc.Q3: What are your testing criteria? A: EN779:2012 ISO9001Q4: What is the international standard for air filters?A:Euro :Pre (G1-G4), Medium (F5-F9), HEPA (H10-H14) ULPA (U15-U17) American :Pre (MERV5-7), Medium (MERV8-14), HEPA (MERV15-19) ULPA(MERV 20)Q5: What is your sample policy?A: The sample price will be the product price of the standard order. If you make a demo order after receiving the sample and proofing (reaching our MOQ), we will roughly understand the sample price and sample price in the order, and give us your MOQ price.Q6: How about your after-sales service?A: Even if we have confidence in the quality of our products, the products may be damaged due to some unpredictable reasons. Please use and maintain the products you purchased correctly in accordance with the user manual or the recommendations of the sales staff. Contact the household to understand the usage of the product, provide suggestions or support professional maintenance services according to the warranty policy.
